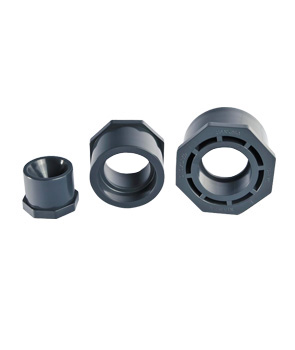

卜申 (SxS)
優(yōu)點(diǎn)：
描述：
描述：
產(chǎn)品規(guī)格（單位: MM）

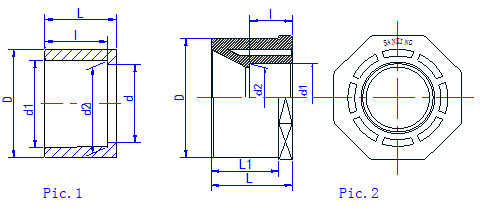

| 公稱尺寸 | 外徑 | 承插口類型 | 承插口尺寸 | Pic. | ||||
| D（MM） | d1 | d2 | I | d | L1 | L | ||
| DN20*DN15 | 25.0 | 20.3 | 20.1 | 16.0 | 16.0 | ―― | 20.0 | Pic.1 |
| DN25*DN20 | 32.0 | 25.3 | 25.1 | 20.0 | 21.0 | 24.0 | ||
| DN32*DN25 | 40.0 | 32.3 | 32.1 | 23.0 | 28.0 | 28.0 | ||
| DN40*DN32 | 50.0 | 40.3 | 40.1 | 28.0 | 36.0 | 32.0 | ||
| DN50*DN40 | 63.0 | 50.3 | 50.1 | 32.0 | 46.0 | 38.0 | ||
| DN63*DN50 | 75.0 | 63.3 | 63.1 | 38.0 | 57.0 | 42.0 | ||
| DN80*DN50 | 90.0 | 63.3 | 63.1 | 38.0 | 57.0 | 51.0 | 61.0 | Pic.2 |
| DN80*DN65 | 90.0 | 75.3 | 75.1 | 45.0 | 71.0 | 51.0 | 61.0 | |
| DN100*DN50 | 110.0 | 63.3 | 63.1 | 38.0 | 57.0 | 61.0 | 73.0 | |
| DN100*DN80 | 110.0 | 90.3 | 90.1 | 51.0 | 86.0 | 61.0 | 73.0 | |
| DN125*DN50 | 140.0 | 63.3 | 63.1 | 39.0 | 50.0 | 76.0 | 91.0 | |
| DN125*DN80 | 140.0 | 90.3 | 90.1 | 51.0 | 80.0 | 76.0 | 91.0 | |
| DN125*DN100 | 140.0 | 110.4 | 110.1 | 61.0 | 100.0 | 76.0 | 91.0 | |
| DN150*DN80 | 160.0 | 90.3 | 90.1 | 51.0 | 80.0 | 86.0 | 101.0 | |
| DN150*DN100 | 160.0 | 110.4 | 110.1 | 61.0 | 100.0 | 86.0 | 101.0 | |
| DN150*DN125 | 160.0 | 140.5 | 140.2 | 76.0 | 125.0 | 86.0 | 101.0 | |
| DN200*DN100 | 225.0 | 110.4 | 110.1 | 61.0 | 100.0 | 119.0 | 137.0 | |
| DN200*DN125 | 225.0 | 140.5 | 140.2 | 76.0 | 125.0 | 119.0 | 137.0 | |
| DN200*DN150 | 225.0 | 160.5 | 160.2 | 86.0 | 150.0 | 119.0 | 137.0 | |
| DN280*DN100 | 280.0 | 110.4 | 110.1 | 61.0 | 100.0 | 146.0 | 166.0 | |
| DN280*DN150 | 280.0 | 160.5 | 160.2 | 86.0 | 150.0 | 146.0 | 166.0 | |
| DN280*DN200 | 280.0 | 225.7 | 225.3 | 119.0 | 200.0 | 146.0 | 166.0 | |
| DN300*DN150 | 315.0 | 160.73 | 159.98 | 86.0 | 150.0 | 163.5 | 183.5 | |
| DN300*DN200 | 315.0 | 225.96 | 225.0 | 118.5 | 200.0 | 163.5 | 183.5 | |
| DN300*DN250 | 315.0 | 281.5 | 280.5 | 146.0 | 250.0 | 163.5 | 183.5 | |
