Flanged Swing Foot Valve
ADVANTAGES：
1) Materials meet drinking water standard
2) The material has been modified by nanometer to improve the pressure resistance and impact resistance.
3)Raw materials add anti ultraviolet absorbent and antioxidant, improving the durability, ageing resistance
4) Can be assembled vertically or horizontally
DESCRIPTION：
1) Material: UPVC,CPVC,PPH,PVDF
2) Size: 2?" - 8''; 75mm - 200mm ; DN65 - DN200
3) Standard: ANSI, DIN, JIS
4) Joint End: Flange
5) Working Pressure: 150 PSI
6) Operating Temperature: UPVC(5~55℃); PPH&CPVC(5~95℃);PVDF(-20~120℃)
7) Valve body color : PVC(dark gray), CPVC(light gray)
PPH(light yellow），PVDF(ivory）
1) Materials meet drinking water standard
2) The material has been modified by nanometer to improve the pressure resistance and impact resistance.
3)Raw materials add anti ultraviolet absorbent and antioxidant, improving the durability, ageing resistance
4) Can be assembled vertically or horizontally
DESCRIPTION：
1) Material: UPVC,CPVC,PPH,PVDF
2) Size: 2?" - 8''; 75mm - 200mm ; DN65 - DN200
3) Standard: ANSI, DIN, JIS
4) Joint End: Flange
5) Working Pressure: 150 PSI
6) Operating Temperature: UPVC(5~55℃); PPH&CPVC(5~95℃);PVDF(-20~120℃)
7) Valve body color : PVC(dark gray), CPVC(light gray)
PPH(light yellow），PVDF(ivory）

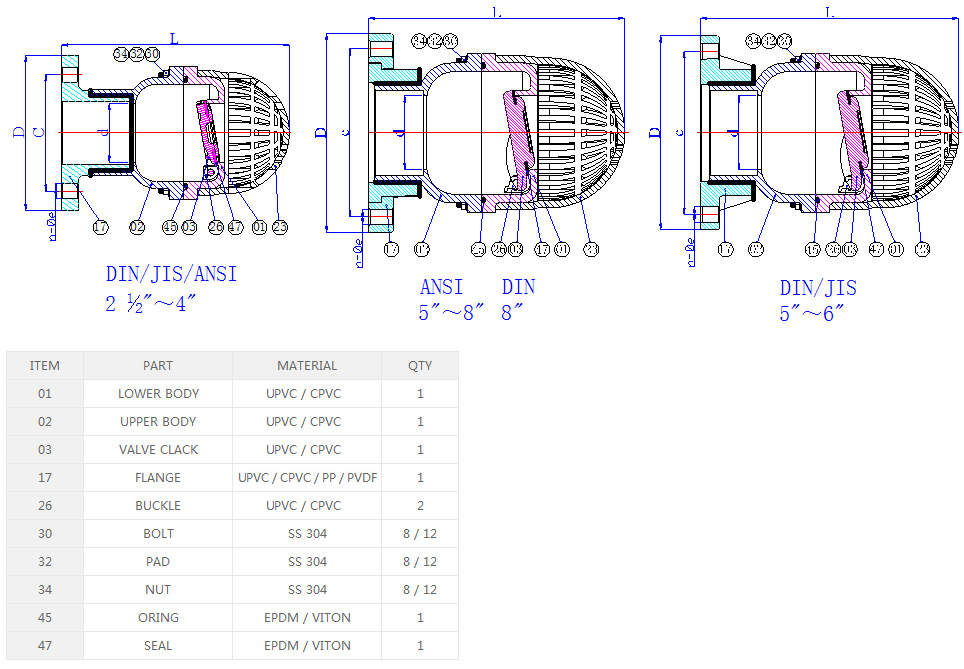

SPECIFICATIONS（UNIT:MM）
|
SIZE |
d? | D | L | C | n-φe | |||||
| ANSI | DIN/JIS | ANSI | DIN/JIS | ANSI? | JIS | DIN | ANSI | DIN/JIS | ||
| 2?"(65)? | 63.00 | 182.00 | 273.50 | 140.00 | 140.00 | 145.00 | 4-19 | |||
| 3"(80)? | 75.00 | 200.00 | 293.00 | 150.00 | 152.00 | 160.00 | 8-19 | |||
| 4"(100)? | 95.00 | 228.00 | 362.50 | 175.00 | 191.00 | 180.00 | 8-19 | |||
| 5"(125)? | 95.00 | 256.00 | 250.00 | 329.50 | 332.50 | 216.00 | 210.00 | 210.00 | 8-22 | 8-23 |
| 6"(150)? | 150.00 | 285.00 | 285.00 | 533.00 | 587.00 | 241.00 | 240.00 | 240.00 | 8-22 | 8-23 |
| 8"(200)? | 150.00 | 343.00 | 460.00 | 298.00 | 8-23 | |||||
?
