Swing Check Valve
ADVANTAGES：
1) Materials meet drinking water standard
2) 100% pure virgin material, CaCO3 free (Chalk)
3) UV resistant powder added
4) Can be assembled vertically or horizontally
DESCRIPTION：
1) Material:PVC,CPVC
2) Size:2?"-6'';75mm-160mm;DN65-DN150
3) Standard:ANSI,DIN,JIS,CNS
4) Joint End:Socket or Threaded(NPT,PT,BSPF)
5) Working Pressure:150 PSI
6) Operating Temperature:PVC(0~55℃);CPVC(0~95℃)
7) Valve body color:PVC(dark gray),CPVC(light gray)
1) Materials meet drinking water standard
2) 100% pure virgin material, CaCO3 free (Chalk)
3) UV resistant powder added
4) Can be assembled vertically or horizontally
DESCRIPTION：
1) Material:PVC,CPVC
2) Size:2?"-6'';75mm-160mm;DN65-DN150
3) Standard:ANSI,DIN,JIS,CNS
4) Joint End:Socket or Threaded(NPT,PT,BSPF)
5) Working Pressure:150 PSI
6) Operating Temperature:PVC(0~55℃);CPVC(0~95℃)
7) Valve body color:PVC(dark gray),CPVC(light gray)

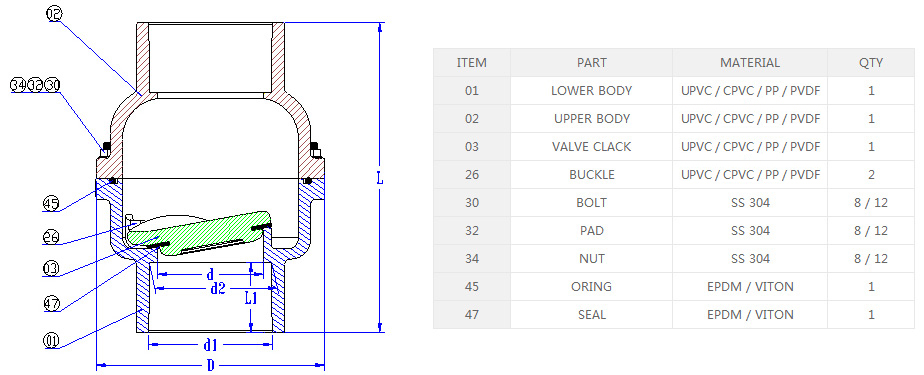

SPECIFICATIONS（UNIT:MM）
| SIZE | d? | d1 | d2 | D | L | L1 | ||||||
| ANSI | DIN | JIS | CNS | ANSI | DIN | JIS | CNS | |||||
| 2?"（65） | 63 | 73.38 | 75.30 | 76.60 | 76.70 | 72.85 | 75.10 | 75.87 | 75.90 | 168.00 | 204.00 | 47.00 |
| 3"（80） | 75 | 89.31 | 90.40 | 89.60 | 89.70 | 88.70 | 90.10 | 88.83 | 88.90 | 172.00 | 230.00 | 53.00 |
| 4"（100） | 95 | 114.76 | 110.40 | 114.70 | 115.00 | 114.10 | 110.10 | 113.98 | 113.80 | 205.00 | 274.00 | 62.00 |
| 6"（150） | 150 | 168.83 | 160.50 | 166.20 | 166.20 | 168.00 | 160.20 | 165.30 | 164.60 | 290.00 | 390.00 | 86.50 |
